Trilium Share – Coffee Blog System

Note: This theme and blog system was created with the help of Opencode and Deepseek V4 Flash.

A complete public-share blog system + Coffee theme for TriliumNext. It turns a normal Trilium note tree into a themed, searchable blog with categories, an RSS feed, a sitemap, a digital garden (growth states) and client-side rendering of Mermaid, Excalidraw and mind-map notes.

Everything is driven by Trilium's built-in Public Share feature plus a few frontend/backend scripts – no external dependencies (except highlight.js, vendored in lib/).

Themes

The share ships with six themes, each with a dark and a light variant (toggled via the header switch / html.theme-light + html.theme-dark). They live in theme/ and are set on the blog by pointing the shareCss relation at the matching note – see docs/switch-blog-theme.md for the step-by-step guide.

Theme	File	Palette (dark / light)	Source
Ash (active)	theme/blog_share_theme_ash.css	panel #1c1b1f / bone #e6dfd1, ember #e0914f steel #7c9aa1 · paper #e9e3d5 / ink #2a2822	Ash palette, Gruvbox-derived (trilium-themes)

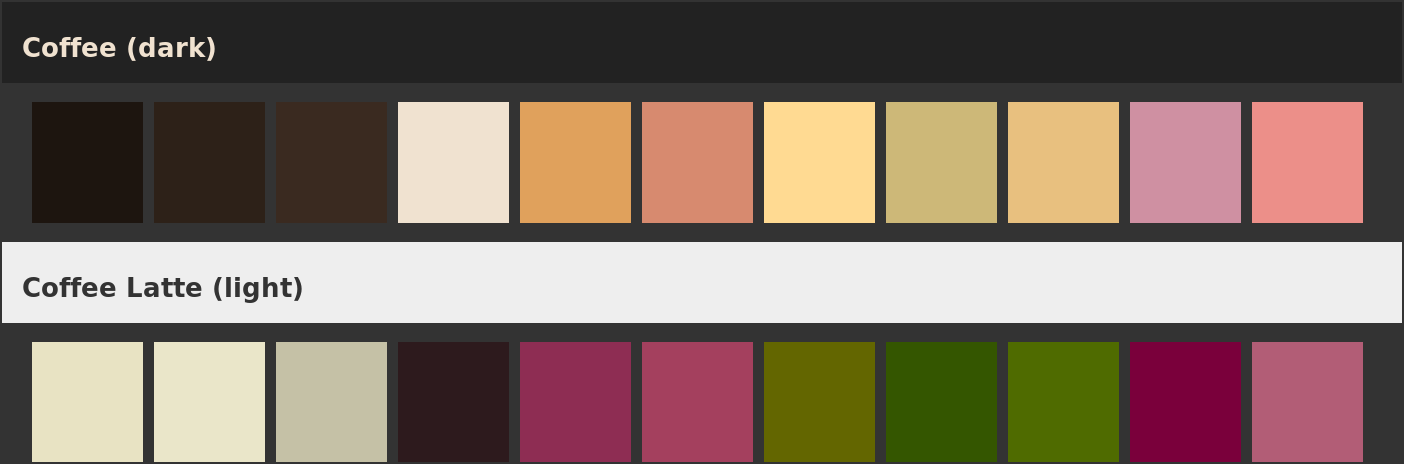

Coffee	theme/blog_share_theme_coffee.css	espresso #1d150f / latte-cream #f0e2d0, caramel #e0a15c · cream #E8E3C3 / ink #2D1A1D, berry #8e2d53	megabyte0x/omarchy-coffee-theme (MIT)

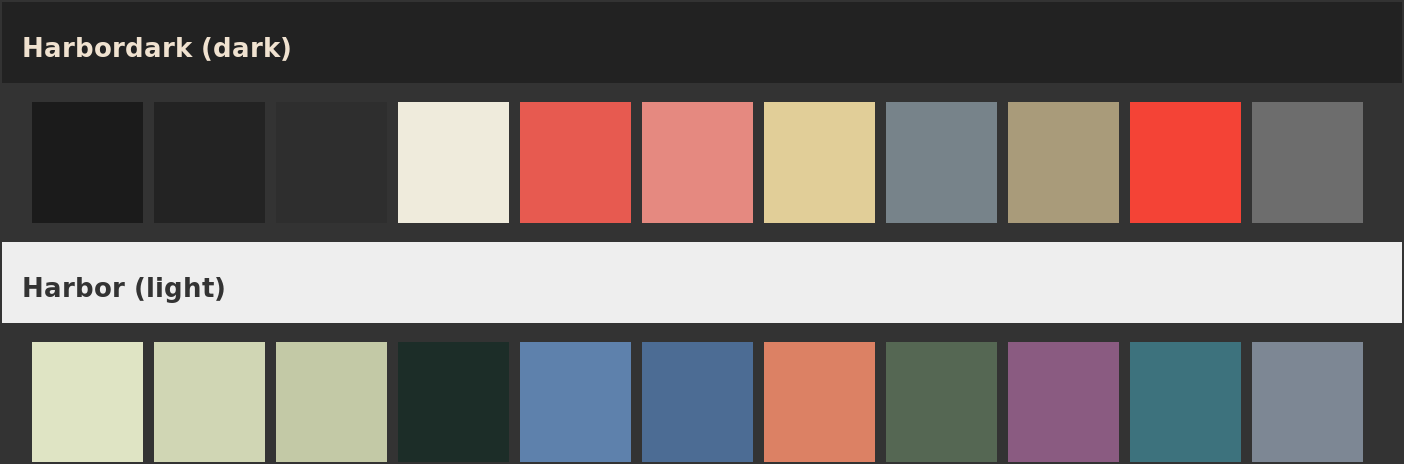

Harbor	theme/blog_share_theme_harbor.css	near-black #1b1b1b / cream #efebdc, coral #e75a50 · paper #dfe4c4 / ink #1c2d28, nord-blue #5e81ac	HANCORE-linux/omarchy-harbordark-theme (MIT)

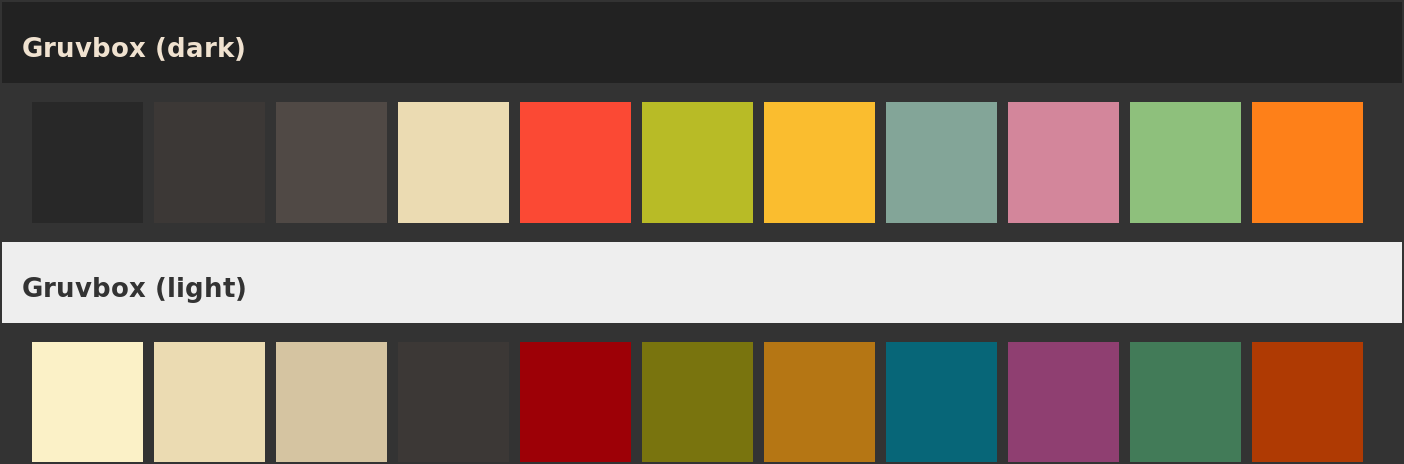

Gruvbox	theme/blog_share_theme_gruvbox.css	bg #282828 / fg #ebdbb2, accents red/green/yellow/blue	morhetz/gruvbox (MIT)

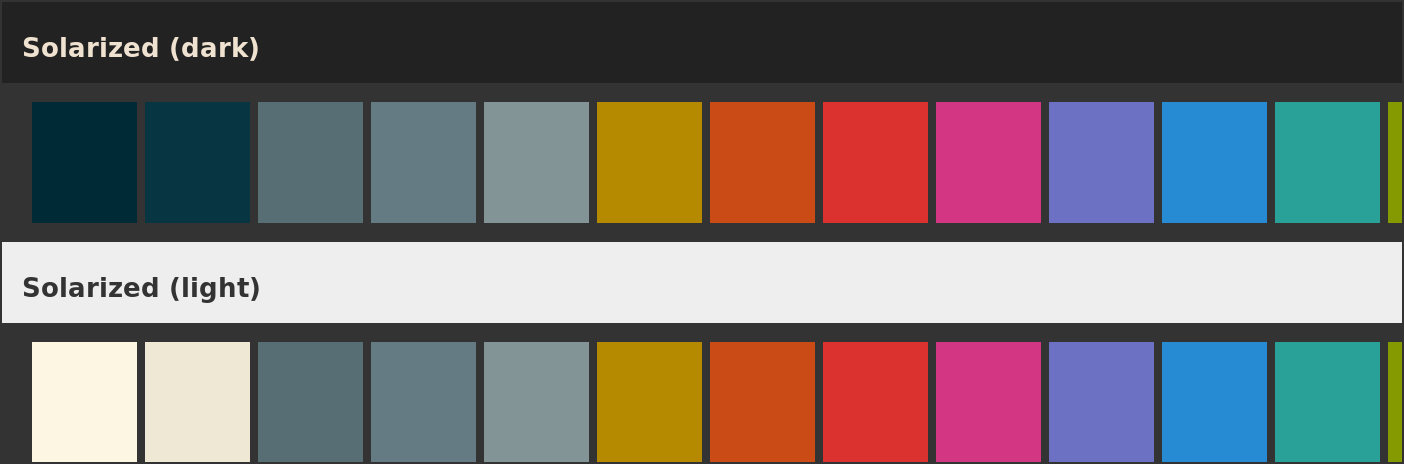

Solarized	theme/blog_share_theme_solarized.css	bg #002b36 / fg #839496, blue #268bd2 cyan #2aa198 · bg #fdf6e3 / fg #657b83	Solarized by Ethan Schoonover (MIT)

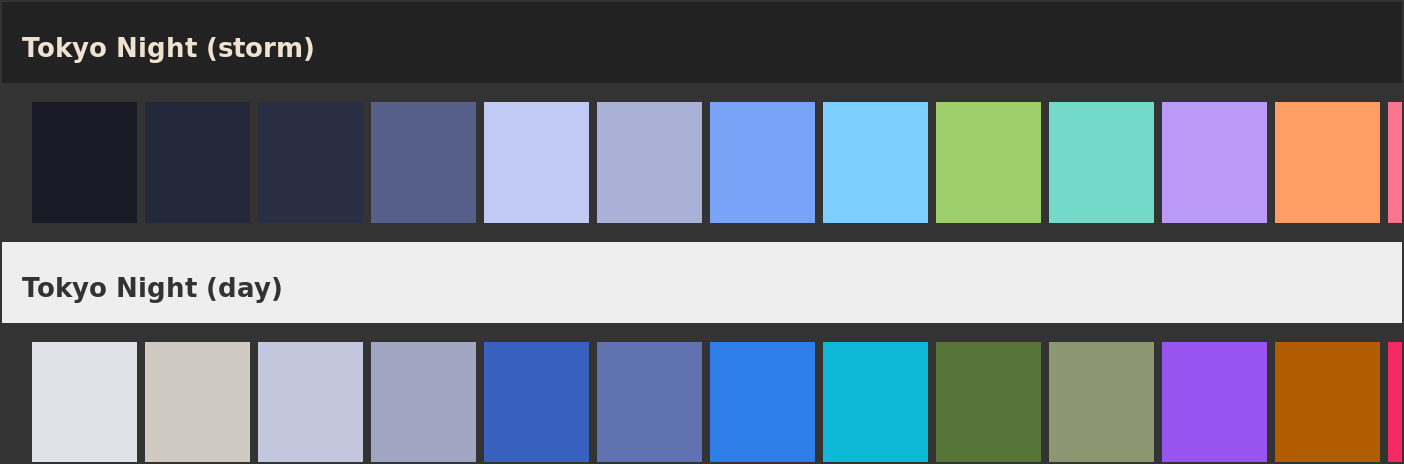

Tokyo Night	theme/blog_share_theme_tokyonight.css	storm #24283b / fg #c0caf5, blue #7aa2f7 · day #e1e2e7 / fg #3760bf	tokyonight.nvim (Apache-2.0)

Features

• Coffee dark / Coffee Latte light theme for the share, with a theme toggle in the header (Ash, Harbor, Gruvbox, Solarized and Tokyo Night are available as well – see the Themes section).
• Blog index, category pages, sub-categories, tags and tag overview.
• Menu sorting: articles in the left menu are sorted by publication date (newest first) and labelled Fri 2026-08-28 <shortened title> automatically. All date displays (post cards, garden table, menu) include the weekday (dateText from the generator).
• Article thumbnails: each post card shows the first image of the article on the left (bounded by the teaser height), summary on the right, lazy-loaded. If an article has a child note named thumb.<ext> or *_thumb.<ext> (e.g. thumb.png, ngc281_thumb.jpg), that image is used instead – ideal for serving small pre-made thumbnails. Thumb child notes are auto-hidden from the blog menu (shareHiddenFromTree).
• Pagination: 10 posts per page on the index and category pages, with prev/next navigation between the pages; article prev/next links stay within the article's category.
• Article metadata: date, category, summary, tags, prev/next navigation, reading time.
• Digital Garden: state labels (Seed → Evergreen, Draft, Review) rendered as badges and colour-coded growth tables.
• Search (client-side over a generated index), RSS feed and sitemap.xml.
• SEO: per-page canonical + Open Graph (og:url, og:image, article/website type), Twitter cards, JSON-LD structured data (WebSite / BlogPosting / CollectionPage), robots.txt and index,follow meta. Provided by a custom share template (templates/share/page.ejs).
• Widget rendering for Mermaid, Excalidraw (canvas) and MindElixir (mind map) notes, with a collapsible, highlighted "Source" block and copy button.
• 3D models: .step / .stp / .stl files (as file notes, as inline attachments, or linked from text notes) render in an interactive three.js viewer (STEP via occt-wasm, OpenCASCADE V8, parsed in a non-blocking module worker). The viewer is full-bleed (~100vw) with a viewport-based height, drag to rotate / scroll to zoom, rounded 8px box, a loading progress bar and a caption showing name · size · triangle count. Large meshes are split into Uint16 chunks so mobile GPUs render them too (≈480k triangles for the demo battery module). See docs/embed-3d-model.md.
• 3D viewer inside Trilium (app widget): the same viewer runs in the Trilium app itself (independent of the blog) via a note-detail-pane widget – see app/.
• Inline embed keywords: plain-text keywords render interactive widgets in any shared note — [map] (MapLibre + VersaTiles vector maps with route lines, GPX/geoShape tracks and popups), [gpx] (track stats + elevation profile with hover measurement cursor), [cad] (3D viewer), [yt] (privacy-friendly YouTube click-to-load facade), [video] / [audio] (stream media file notes). Everything follows the blog theme. See docs/embed-keywords.md.
• Code highlighting (highlight.js + line numbers) and copy buttons on all code boxes.
• Optional "Buy me a coffee" button with locally-hosted Cookie font.
• blog_generator (backend) builds index/feed/sitemap/search-data; blog_publish_manager moves notes between an Unpublished staging area and the live blog.

Repository layout

Path	Content	Trilium note type / mime
blog_generator.js	backend script that generates index, feed, sitemap, search data, category & tag pages	code, application/javascript;env=backend
blog_publish_manager.js	backend script that mirrors notes between Unpublished and the blog	code, application/javascript;env=backend
theme/blog_share_base.css	Base stylesheet (layout/components, palette-independent, var()-driven)	code, text/css
theme/blog_share_theme_ash.css	Ash / Ash light share theme (currently active) – Gruvbox-derived palette	code, text/css
theme/blog_share_theme_coffee.css	Coffee / Coffee Latte share theme (palette overrides)	code, text/css
theme/blog_share_theme_harbor.css	Harbor / Harbordark share theme	code, text/css
theme/blog_share_theme_gruvbox.css	Gruvbox light/dark share theme	code, text/css
theme/blog_share_theme_solarized.css	Solarized dark/light share theme	code, text/css
theme/blog_share_theme_tokyonight.css	Tokyo Night (storm/day) share theme	code, text/css
theme/favicon.svg	default site favicon	code (SVG)
theme/cookie.woff2	"Cookie" font for the Buy me a coffee button	file, font/woff2
lib/highlight.js	vendored highlight.js	code, application/javascript
lib/3d/*	three.js + OrbitControls + STLLoader + occt-wasm (OCCT V8 bundle + WASM) for the 3D viewer	code / file
lib/hljs_line_numbers.js	highlight.js line-numbers plugin	code
scripts/*.js	frontend share snippets (content is pasted verbatim into a code note, including the <script>/<style> wrapper)	code
app/3d-model-viewer-app.jsx	JSX widget that renders the 3D viewer for model file notes inside the Trilium app (label #widget=3dModelViewer)	code, text/jsx
app/3d-worker.js	Web Worker (STEP parsing) loaded by the app widget from a code note (CSP-safe)	code, text/javascript
templates/blog_article.html	article template with promoted labels	text
templates/share/*.ejs	custom share template + partials (canonical, OG, JSON-LD, robots)	code, application/x-ejs
assets/og-banner.png	default Open Graph image (1200×630, replace with your own)	file
docs/embed-3d-model.md	how to embed STEP/STL in a note	–
docs/embed-keywords.md	reference for the inline embed keywords (map/gpx/cad/yt/video/audio)	–
examples/*	sample category logo + menu icon script (ignis8)	code / SVG
generated/*	reference output, regenerated automatically by blog_generator.js	code / xml

The file content of a scripts/* note already contains the <script> / <style> tags. When you create the code note, paste the whole file into the note content.

Prerequisites

• TriliumNext server with Public Share enabled (Options → Public access).
• A public hostname (optional but recommended, e.g. for sitemap.xml / OG tags).
• Basic familiarity with Trilium attributes (labels & relations).

---

Installation

1. Create the note structure

root
└── Blog                    (book)
    ├── Your Blog             (book)  ← blog root, the shared note
    │   ├── .blog           (book)  ← system notes (scripts, css, data)
    │   ├── Astrophotography (book) ← example category
    │   ├── Electronic      (book)
    │   ├── Leathercraft    (book)
    │   ├── Digital Garden  (book)  ← growth-state garden category
    │   ├── Tags            (text)  ← auto-filled tag overview
    │   ├── About Me        (text)
    │   └── Impressum       (text)
    ├── Unpublished         (book)  ← staging area
    ├── blog_generator      (code, backend)
    └── blog_publish_manager (code, backend)

You can use any titles; the generator finds notes by the constants at the top of blog_generator.js (BLOG_ROOT_NOTE_ID, BLOG_SYSTEM_NOTE_ID, TAGS_SECTION_TITLE).

2. Create the code notes

Under .blog create one code note per file, using the file name as the note title (optional, but matches the generator):

Note title	File	mime
blog_share_theme_ash.css	theme/blog_share_theme_ash.css	text/css
blog_share_theme_coffee.css	theme/blog_share_theme_coffee.css	text/css
blog_share_theme_harbor.css	theme/blog_share_theme_harbor.css	text/css
blog_share_theme_gruvbox.css	theme/blog_share_theme_gruvbox.css	text/css
blog_share_theme_solarized.css	theme/blog_share_theme_solarized.css	text/css
blog_share_theme_tokyonight.css	theme/blog_share_theme_tokyonight.css	text/css
favicon	theme/favicon.svg	– (SVG)
Cookie	theme/cookie.woff2	font/woff2 (file note)
highlight.js	lib/highlight.js	application/javascript
hljs line numbers plugin	lib/hljs_line_numbers.js	text/javascript
hide home title	scripts/hide_home_title.js	text/html
garden h1 green	scripts/garden_h1_green.js	text/html
table column hover	scripts/table_column_hover.js	text/html
blog card click	scripts/blog_card_click.js	text/html
garden row click	scripts/garden_row_click.js	text/html
code note highlight	scripts/code_note_highlight.js	text/html
code copy & lines	scripts/code_copy_lines.js	text/html
title state badge	scripts/title_state_badge.js	text/html
bmc button	scripts/bmc_button.js	text/html
logo share alias	scripts/logo_share_alias.js	text/html
prev next	scripts/prev_next.js	text/html
reading time	scripts/reading_time.js	text/html
search header	scripts/search_header.js	text/html
related posts	scripts/related_posts.js	text/html
note fallback	scripts/note_fallback.js	text/html
menu date sort	scripts/menu_date_sort.js	text/html
3d model viewer	scripts/3d_model_viewer.js	text/html
geo map render	scripts/geo_map_render.js	text/html
three.js	lib/3d/three.min.js	application/javascript
three orbit controls	lib/3d/OrbitControls.js	application/javascript
three stl loader	lib/3d/STLLoader.js	application/javascript
occt-import-js	lib/3d/occt-import-js.js	application/javascript
occt-import-js.wasm	lib/3d/occt-import-js.wasm	application/wasm (file note)
occt-wasm bundle	lib/3d/occt-wasm-bundle.js	application/javascript (ESM OcctKernel, used by the [cad] viewer worker)
occt-wasm.wasm	lib/3d/occt-wasm.wasm	application/wasm (file note)
feed.xml	generated/feed.xml	code (regenerated)
sitemap.xml	generated/sitemap.xml	code (regenerated)
state_map	generated/state_map.js	text/html (regenerated)
blog_data	generated/blog_data.js	text/html (regenerated)
geo_data	generated/geo_data.js	text/html (regenerated; auto-created and auto-attached as shareHtml by buildGeoData())
robots.txt	generated/robots.txt	code (static)
share template	templates/share/page.ejs	application/x-ejs
tree_item, prev_next, toc_item (children of share template)	templates/share/tree_item.ejs etc.	application/x-ejs
og-banner	assets/og-banner.png	image note

Also create, under the Blog book: blog_generator (from blog_generator.js, mime application/javascript;env=backend) and blog_publish_manager (from blog_publish_manager.js, mime application/javascript;env=backend).

3. Wire the attributes

On the blog root note (Your Blog), add:

Attribute	Value	Inheritable
shareRoot	true	–
shareAlias	blog	–
shareIndex	(empty)	–
shareDescription	e.g. Project documentation & technical blog	–
shareOpenGraphURL	https://YOUR-INSTANCE.example.com/	–
shareOpenGraphColor	#83a598	–
iconClass	bx bx-edit-alt	–
~shareCss	→ blog_share_theme_coffee.css (the active theme)	yes
~shareFavicon	→ favicon	yes
~shareTemplate	→ share template	yes
~shareOpenGraphImage	→ og-banner	–
~shareHtml	→ table column hover, blog card click, garden row click, code note highlight, code copy & lines, state_map, title state badge, bmc button, logo share alias, blog_data, prev next, reading time, search header, ignis8 menu icon (optional), note fallback, menu date sort, 3d model viewer, geo map render	yes
~shareHtml	→ hide home title	no (index only)
~runOnNoteContentChange, ~runOnAttributeChange, ~runOnNoteCreation, ~runOnNoteTitleChange, ~runOnAttributeCreation, ~runOnBranchDeletion, ~runOnBranchChange, ~runOnChildNoteCreation	→ blog_generator	yes
~runOnAttributeChange, ~runOnAttributeCreation	→ blog_publish_manager	yes

On the script notes (under .blog), add:

Note	Attribute
hide home title	shareHtmlLocation=head:end, shareHiddenFromTree
garden h1 green	shareHtmlLocation=head:end, shareHiddenFromTree
state_map	shareHtmlLocation=body:start, shareHiddenFromTree
title state badge	shareHtmlLocation=content:start, shareHiddenFromTree
every other script	shareHtmlLocation=body:end, shareHiddenFromTree
highlight.js	shareHiddenFromTree
feed.xml	shareAlias=feed, shareRaw, shareHiddenFromTree
sitemap.xml	shareAlias=sitemap.xml, shareRaw, shareHiddenFromTree
robots.txt	shareAlias=robots.txt, shareRaw, shareHiddenFromTree
.blog (book)	shareHiddenFromTree, viewType=list

On the Digital Garden category note (and any other garden category), add:

Attribute	Value	Inheritable
blogGarden	(empty)	–
shareAlias	digital-garden	–
iconClass	bx bx-leaf	–
label:state	promoted,alias=Growth Condition,single,select,options=Seed;Seedling;Sprout;Sprouting;Bud;Evergreen;Draft;Review	yes
~shareHtml	→ garden h1 green	–

Categories: any top-level note under the blog root (that is not Tags, .blog, About Me, Impressum or Search) is treated as a category. blogGarden marks it as a growth-state garden.

Project landing pages: to turn a category into a pure project description page instead of an article collector, add blogNoArticles (empty label) to the category note. The generator then keeps only the user text above the <!-- blog:articles --> marker and does not append the article list; the articles stay reachable via the tree and the "Subpages" child links.

4. Replace the placeholder note IDs

Trilium assigns random note IDs on creation, so the scripts that reference notes by ID contain placeholder tokens. Replace every __TOKEN__ with the real note ID of the corresponding note:

Token	Replace with note
__BLOG_ROOT_ID__	Your Blog
__BLOG_SYSTEM_ID__	.blog
__UNPUBLISHED_ROOT_ID__	Unpublished
__BLOG_GENERATOR_ID__	blog_generator
__HIDE_HOME_TITLE_ID__	hide home title
__HLJS_ID__	highlight.js
__HLJS_LN_ID__	hljs line numbers plugin
__COOKIE_FONT_ID__	Cookie
__THREE_ID__	three.js
__THREE_ORBIT_ID__	three orbit controls
__THREE_STL_ID__	three stl loader
__OCCT_JS_ID__	occt-import-js
__OCCT_WASM_ID__	occt-import-js.wasm
__TITLE_ICON_ID__	(only needed for the ignis8 example)
__CATEGORY_NOTE_ID__	(only needed for the ignis8 example)

Then edit the constants at the top of blog_generator.js and blog_publish_manager.js:

• BLOG_ROOT_NOTE_ID / BLOG_ROOT_ID → the blog root note ID
• BLOG_SYSTEM_NOTE_ID → the .blog note ID
• UNPUBLISHED_ROOT_ID → the Unpublished note ID
• BLOG_GENERATOR_ID → the generator note ID
• SHARE_BASE → your public base URL, e.g. https://YOUR-INSTANCE.example.com
• SITE_TITLE, SITE_DESCRIPTION → your blog name/tagline

5. Enable Public Share and generate

1. On Your Blog right-click → Share → enable sharing.
2. Run the generator once: execute the blog_generator script (e.g. press play in the script editor, or trigger any attribute/content change). It is also wired to run automatically on every relevant change (runOn*), and you can add run=daily to it for a nightly run.
3. Open the share (options → Public access → URL) – the blog index is generated at the share root.

6. Publish an article

1. Create a note from the templates/blog_article.html content (or clone the template note). It promotes the publish, date, category, summary, shareAlias and tags labels.
2. Put it under a category inside Your Blog and set publish=true.
3. To keep it private, put it under Unpublished instead – blog_publish_manager clones it into the matching category (and back) when you flip publish.

7. Optional: clean hostname via nginx

If you want a clean domain instead of /share, proxy it and rewrite / to /share/:

server {
    server_name blog.example.com;
    location / {
        proxy_pass https://notes.example.com/share/;
        proxy_set_header Host notes.example.com;
    }
}

---

How the generator works

• Walks the blog root and collects notes with publish=true.
• Writes the index (first 10 posts) plus page notes (blog-2, blog-3, …) with prev/next navigation between the pages.
• Writes category pages (sub-category chips + articles, respecting a <!-- blog:articles --> marker so your hand-written intro text is kept), paginated the same way; page notes live in the .blog system note and are tagged with blogPagedFor.
• Writes tag pages and the tags overview.
• Regenerates feed.xml (RSS), sitemap.xml, state_map (garden states) and blog_data (search index with title, summary, tags, category and YYYY-MM-DD date – used by the header search, the category-scoped prev/next and the date-sorted menu).
• Sets shareDescription on every published note from its summary.

Customisation

• Theme: pick one of theme/blog_share_theme_{ash,coffee,harbor,gruvbox,solarized,tokyonight}.css and point the blog's shareCss relation at it – see docs/switch-blog-theme.md. Each theme ships dark + light via html.theme-light/dark. The 3D viewer and Mermaid rendering read the theme's CSS variables, so they adapt automatically to whichever theme is active.
• Buy me a coffee: edit scripts/bmc_button.js (link, text, copyright) – the font is referenced via __COOKIE_FONT_ID__.
• Category logos: copy the examples/ icon + ignis8_menu_icon.js pattern to give a category a custom menu icon and title logo.

License

This project is licensed under the GNU General Public License v3.0 – see LICENSE.

The repository also contains third-party assets that keep their own licenses: lib/highlight.js (BSD-3-Clause), lib/hljs_line_numbers.js (MIT), theme/cookie.woff2 (SIL OFL 1.1), the palette images assets/palette-*.png (MIT) and the embedded Trilium logo in scripts/bmc_button.js (AGPL-3.0). See THIRD_PARTY_LICENSES.md for details.
